TOP COPPER BUSHAR POLISHING MACHINE MANUFACTURER IN INDIA

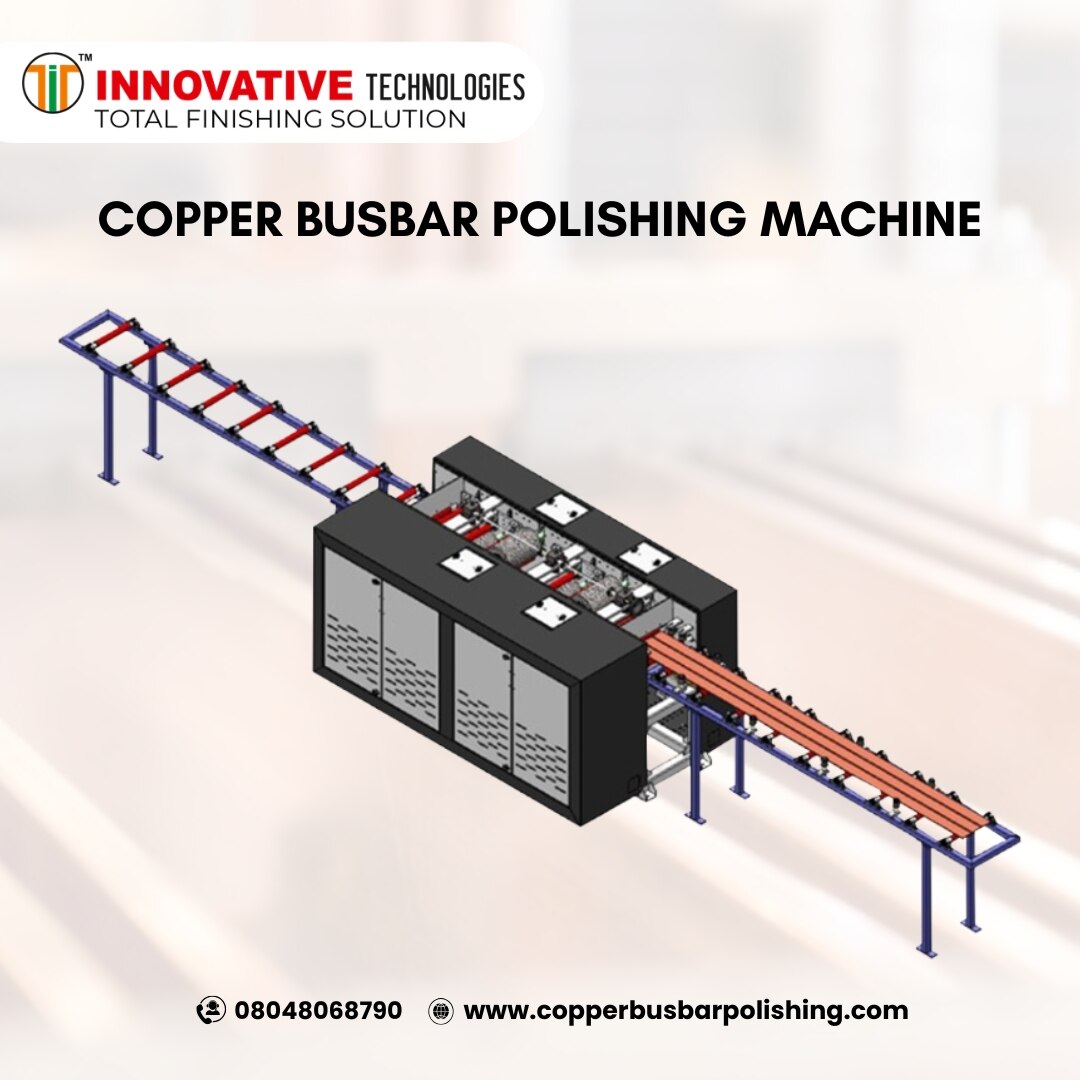

Copper Busbar Polishing Machine

Powered by Innovative Technologies Pvt. Ltd. – Total Finishing Solution

The Copper Busbar Polishing Machine by Innovative Technologies is an advanced and reliable industrial solution designed to deliver smooth, high-quality finishes on copper busbars. Built with precision and durability in mind, this machine is ideal for manufacturers who demand consistency and performance.

We supply this machine across India and export globally, providing custom solutions to meet diverse industrial requirements.

Motor & Drive Details: Brush Motor: 5 H.P. (BBL / Hindustan) Up-Down Motor: 0.5 H.P. (Fenner + Hindustan) Conveyor Gear Motor: 1 H.P. (Bonfiglioli + Hindustan) with VFD Control Oscillation Gear Motor: 1 H.P. (Bonfiglioli + Hindustan)

Technical Features:

• Polishing Type: Capable of both-side brush polishing (top and bottom)
• Brush Dimensions: 200 mm diameter x 300 mm length
• Conveyor Table Size: 3 meters in length on both entry and exit sides
• Number of Brushes: 4 (2 brushes on top, 2 brushes at the bottom)
• Processing Type: Dry polishing method for clean and efficient operation
• Finish Quality: Supports both matt and mirror finishes
• Supported Busbar Width: 10 mm to 300 mm
• Supported Busbar Thickness: 2 mm to 30 mm
• Thickness Adjustment: Manual control for easy customization
• Brush Pressure System: Motorized for consistent pressure and finish
• Oscillation Movement: 10 mm + 10 mm for complete surface coverage
• Production Capacity: Handles 8 to 10 tons of busbars per shift
• Labour Requirement: Operated efficiently by 2 workers + 1 helper
• Electrical Supply: Runs on standard 3-phase power system
• Machine Body Size: 2500 mm (L) x 1500 mm (W) x 1200 mm (H)
• Roller Conveyor Size: 3 meters on each side
• Total Setup Size (with conveyor): 8500 mm x 1500 mm x 1200 mm
• Total Weight: Approximately 2 tons

Why Choose Our Copper Busbar Polishing Machine?

• Engineered for long-lasting performance in high-volume production
• Capable of achieving both mirror and matt finishes with precision
• Handles a wide range of busbar dimensions
• Simple operation and minimal labor required
• Motorized components ensure consistent results
• Robust design suitable for continuous industrial usage
• Available in custom configurations based on client needs

Note: We also manufacture custom machines tailored to your specific requirements.
 We proudly export our machines worldwide.

Contact Us Today for More Information.
